HabasitLINK M1220
HabasitLINK M1220
Brand: Habasit – Switzerland
Series
- HabasitLINK M1220 Flat Top
- HabasitLINK M1220 Grip Top
- HabasitLINK M1220 HighGrip-L
- HabasitLINK M1220 ActivXchange
Request a quote
Contact MHP at 0909 840 002 for consultation and quotation!
- Nationwide Delivery
- Technical Waranty

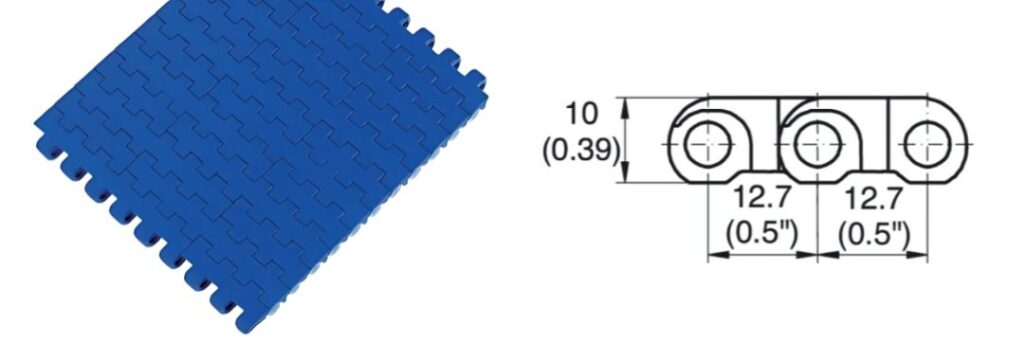

Habasit M1220 Flat Top
Description
- “Nosebar transfer”, recommended diameter 18 mm
- (0.71″); 16 mm (0.63″) possible
- 0% open area
- Food approved materials available
- Easy to clean, open hinge
- Rod diameter 5 mm (0.2″)
- “Open window” sprockets
Available accessories
- Flights
- Side guards
- GripTop modules
- Saniclip
Belt data
M1220 Grip Top Habasit
Description
- “Nosebar transfer”, recommended diameter 18 mm
- (0.71″); 16 mm (0.63″) possible
- 0% open area
- Open hinge
- Available with or without ndent 50 mm (2″)
- Abrasion resistant GripTop, high friction
- Food approved materials available
- Rod diameter 5 mm (0.2″)
- “Open window” sprockets
Available accessories
- Flights

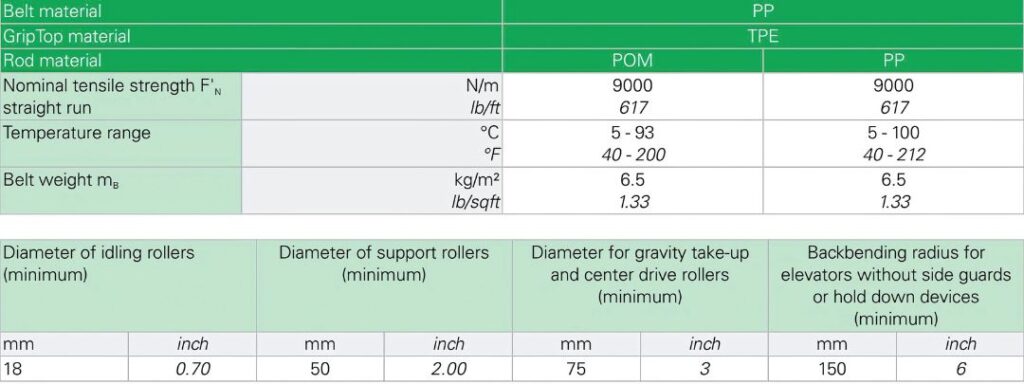

Belts data
M1220 HighGrip-L Habasit
Description
- “Nosebar transfer”, recommended diameter 18 mm
- (0.71″); 16 mm (0.63″) possible
- 0% open area
- Open hinge
- Indent 50 mm (2″)
- GripTop with grooved surface for high friction and lessgrip reduction by dirt and dust
- Food approved materials available
- Rod diameter 5 mm (0.2″)
- “Open window” sprockets
Available accessories
- Flights
Belt data
M1220 ActivXchange Habasit
Description
- 0% open area
- Solid plate
- Smooth and flat surface with flush edges
- Designed for 90° self clearing transfer
- Suitable for 83.8 mm (3.3”) track
- 10 mm (0.39″) thick
- Rod diameter 4.5 mm (0.18″)
- Smart Fit rod retaining headless
- Food approved materials available
- Robust design
- Suitable with all M1200 sprockets
- Tracking tabs for belt guiding
Belt data
